Automatic case packer for bottles

Automatic pick & place case packer for bottles

Packaging machines

custom machines

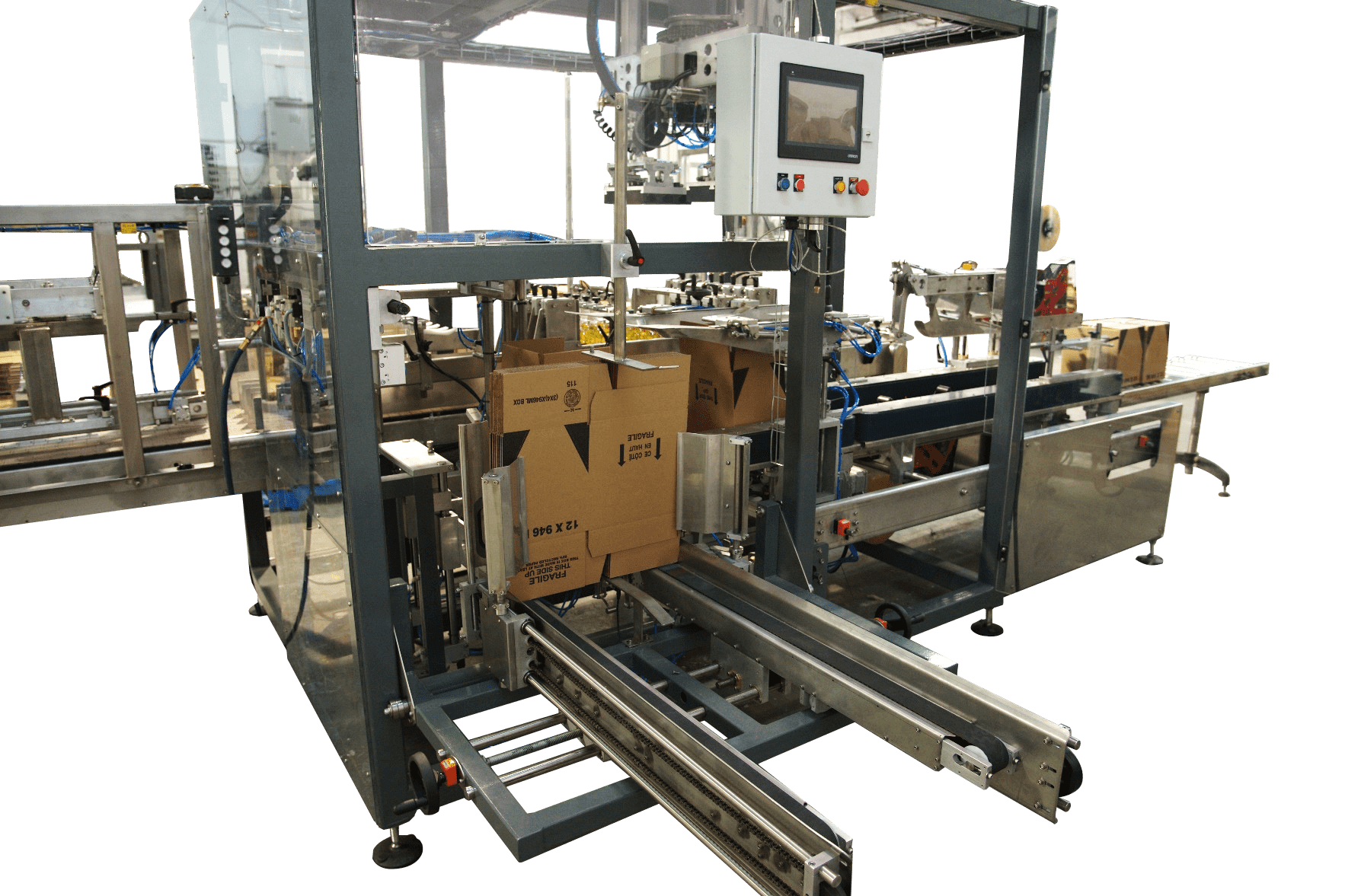

This case packer is made to individual specifications to perform packing of bottles, containers, jars into corrugated boxes or cases. The box forming and box sealing is integrated at the same machine. Picking and placing of the product is perfomed by rotary grippers. The grippers geometry matches the product shape to provide stable and secure gripping. The grippers can have different modifications according to different product sizes and shapes. The packed box is sealed with adhesive tape or hot glue.

case-packer-for-bottles
Request A Quote

Operation steps

Automatic pick & place case packer for bottles

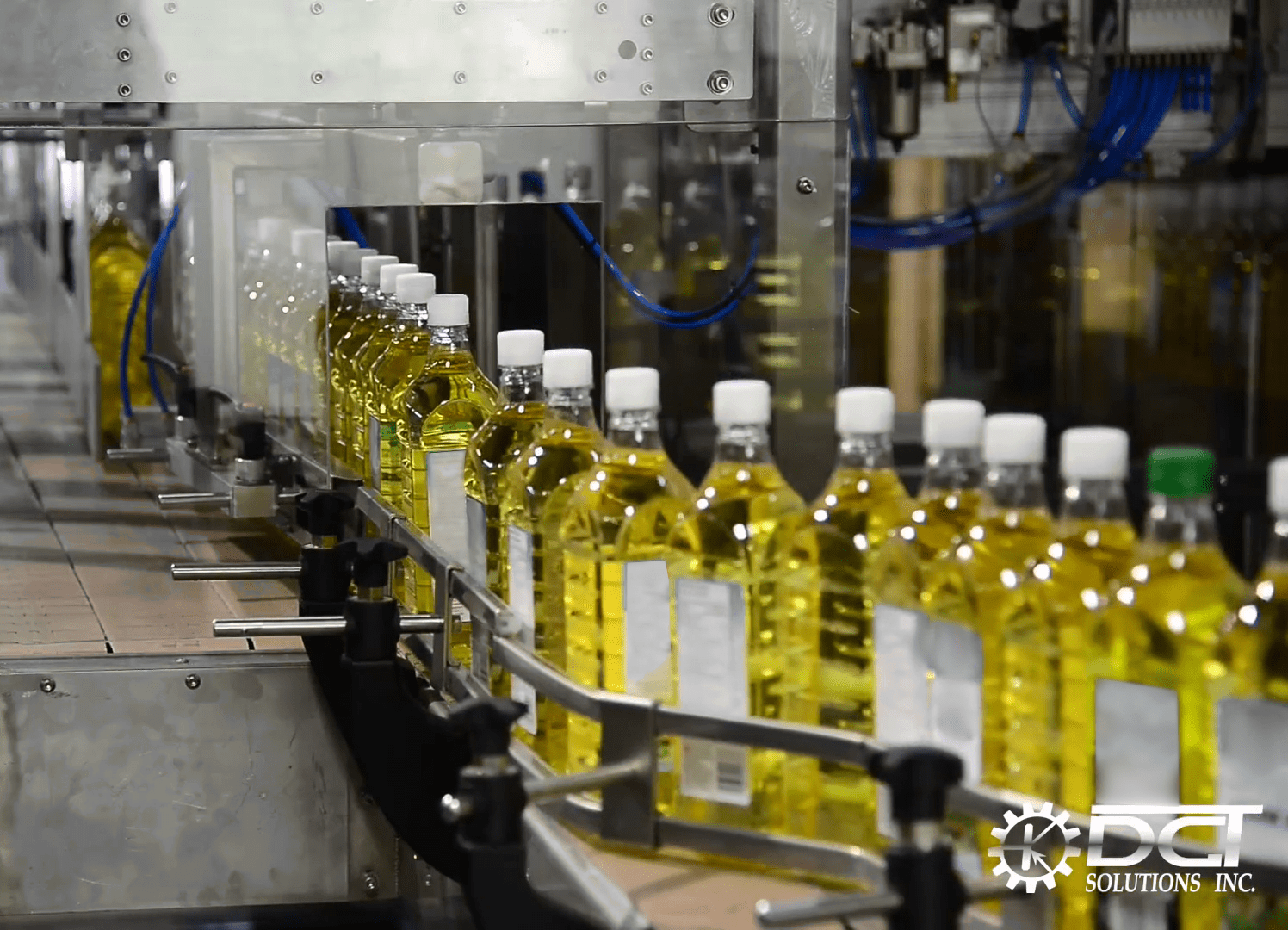

Step 1: Bottles infeed

The bottles or containers are fed into the machine by the infeed conveyor in a single row.

Automatic pick & place case packer for bottles

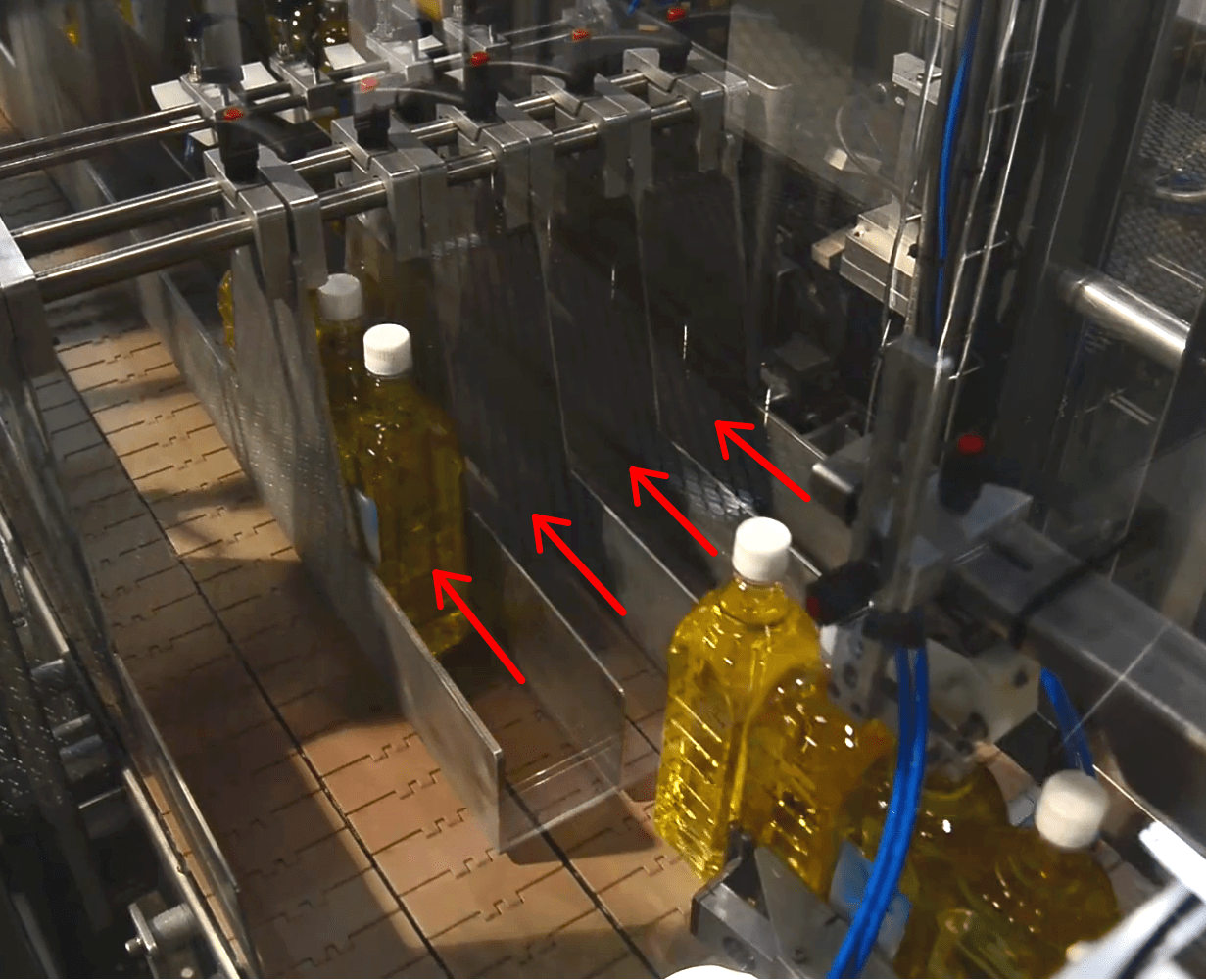

Step 2: Bottles flow dividing

The bottles flow is divided into several lanes according to the packaging pattern.

Automatic pick & place case packer for bottles

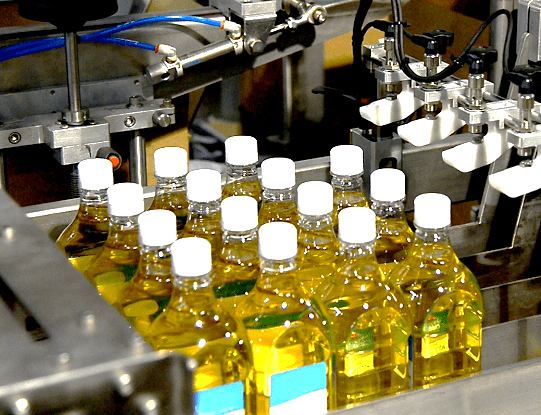

Step 3: Bottles accumulation

The bottles are transferred to the accumulation section where they are accumulated according to the packing pattern.

Automatic pick & place case packer for bottles

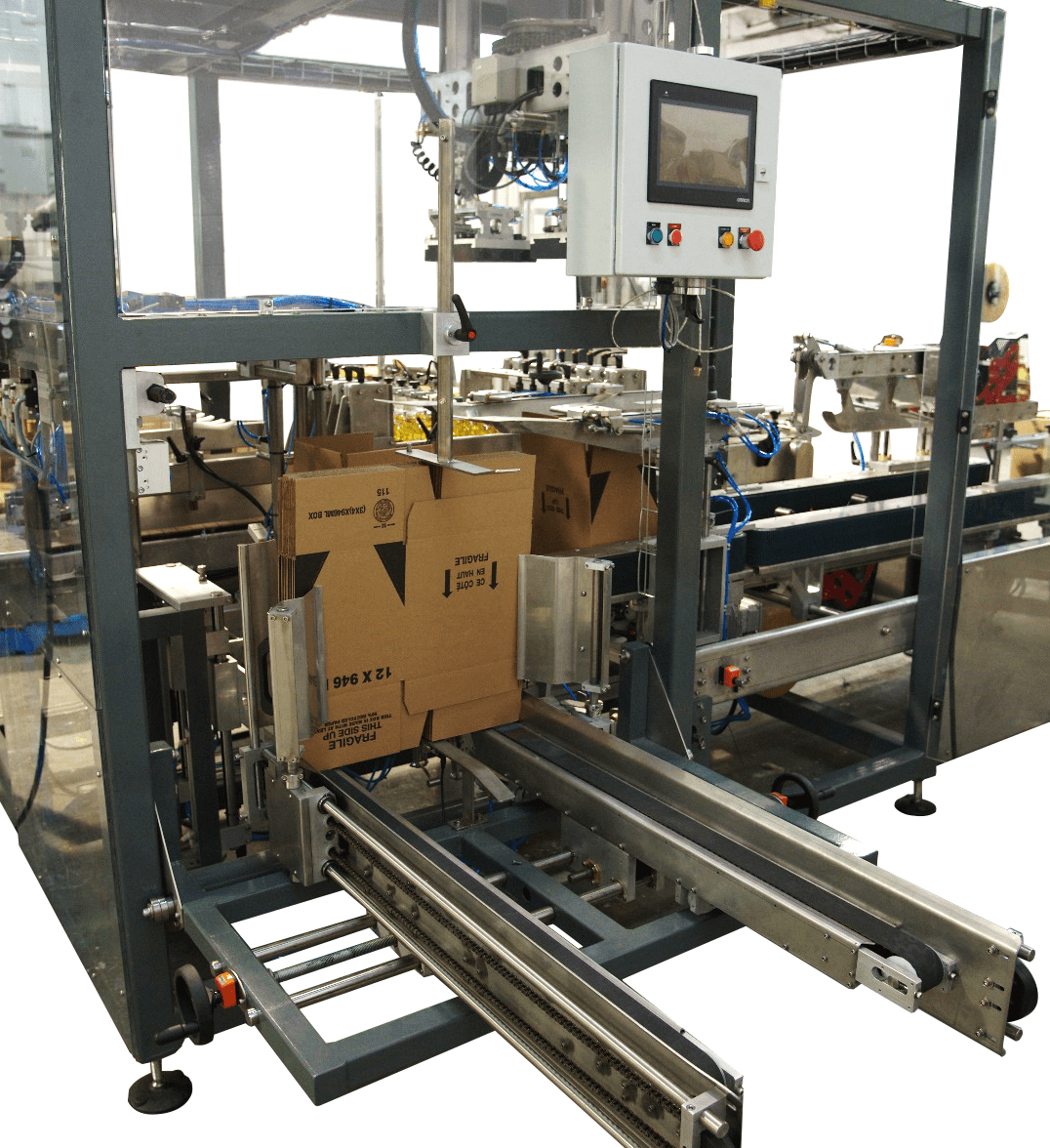

Step 4: Box forming

The box or case is formed at the box forming section. This section is provided with the box magazine where the boxes in flat are loaded manually. The process of forming the boxes is fully automatic. When the box is formed, it is transferred by side belts into the packing section of the machine.

Automatic pick & place case packer for bottles

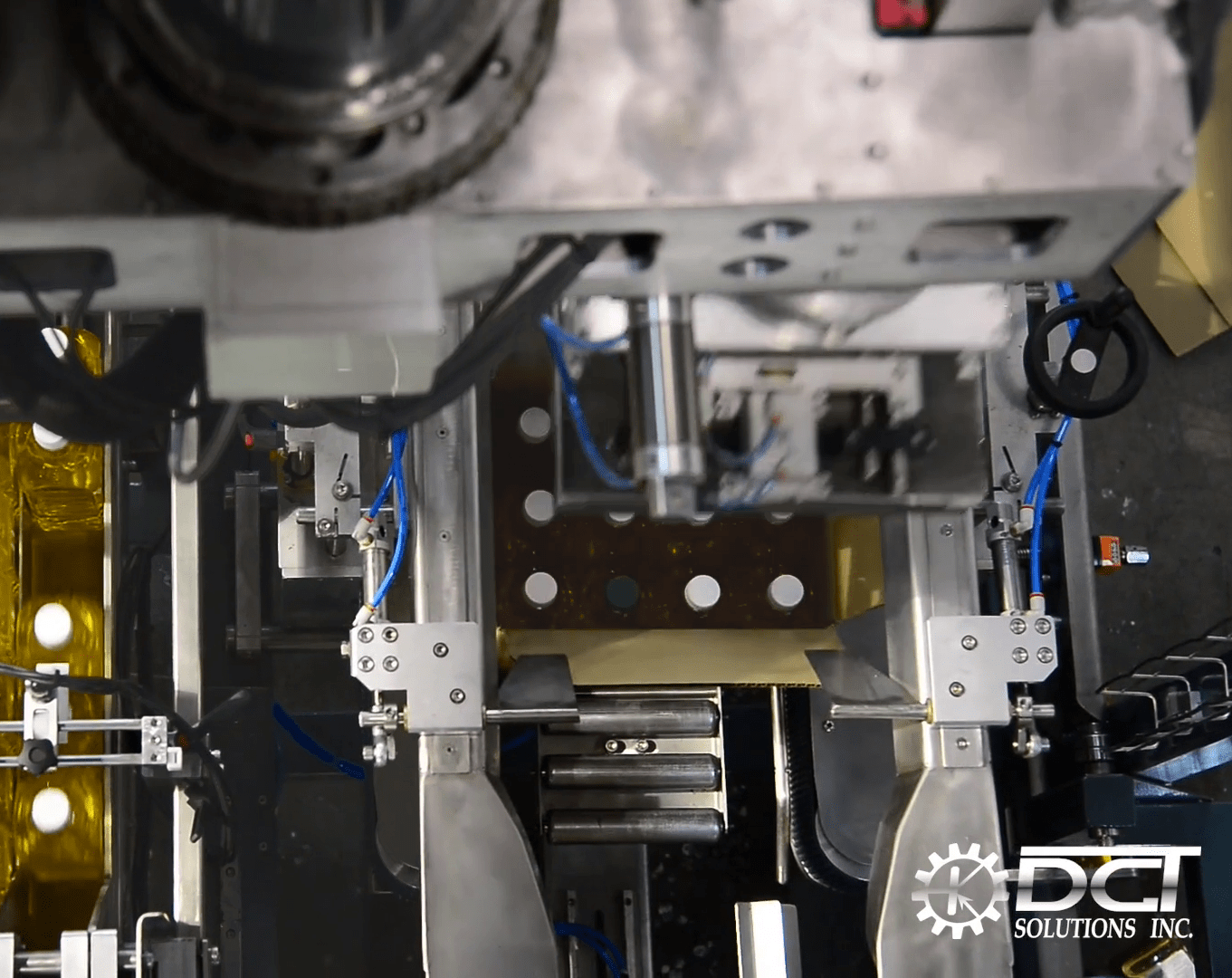

Step 5: Preparing box for packing

The box in the packing section is held in place with its upper flaps opened to not interfere with packing process.

Automatic pick & place case packer for bottles

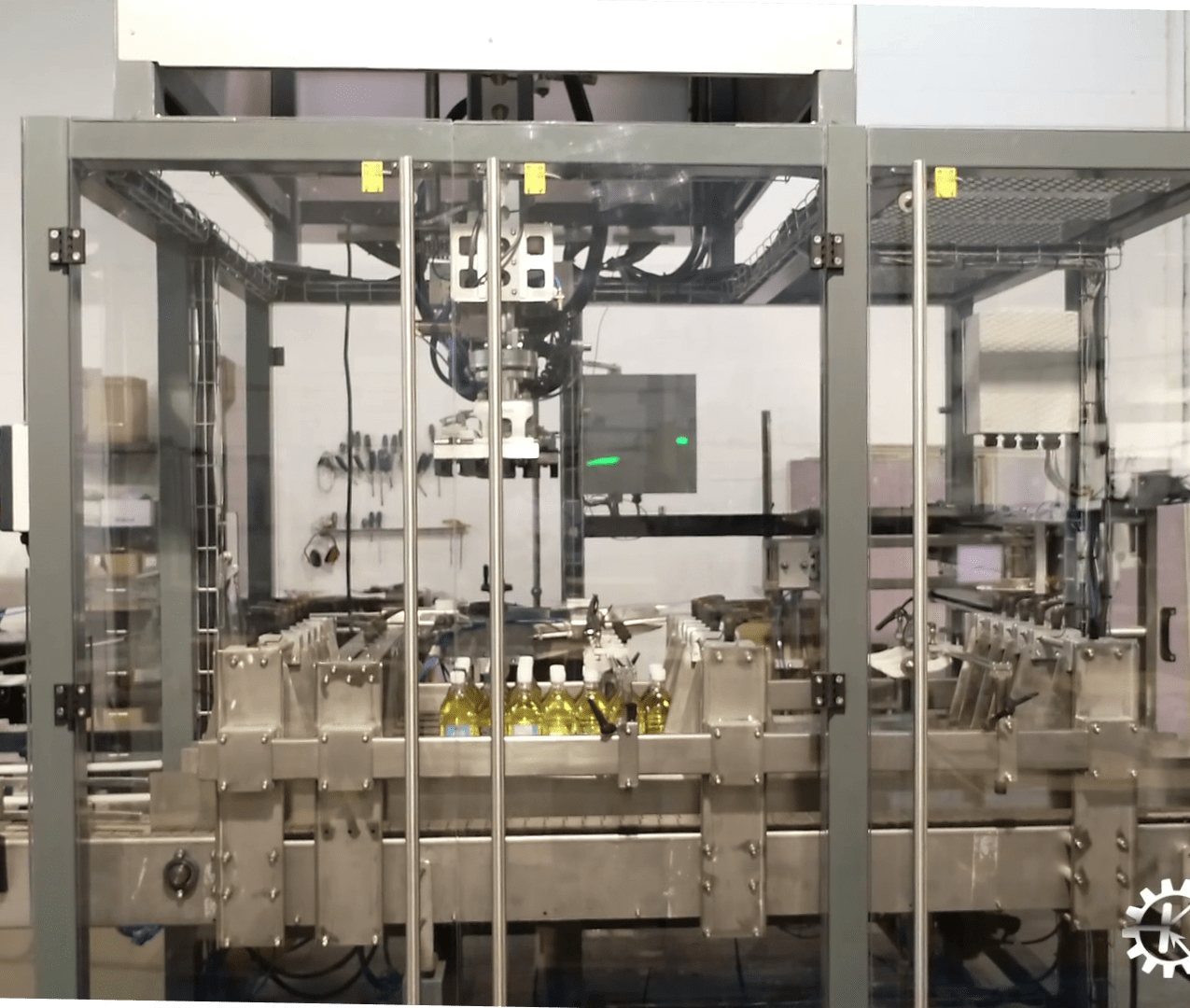

Step 6: Bottles picking

When sensors detect the required quantity of product in the accumulation section, the rotary grippers pick the bottles and rotate them to the packing section.

Automatic pick & place case packer for bottles

Automatic pick & place case packer for bottles

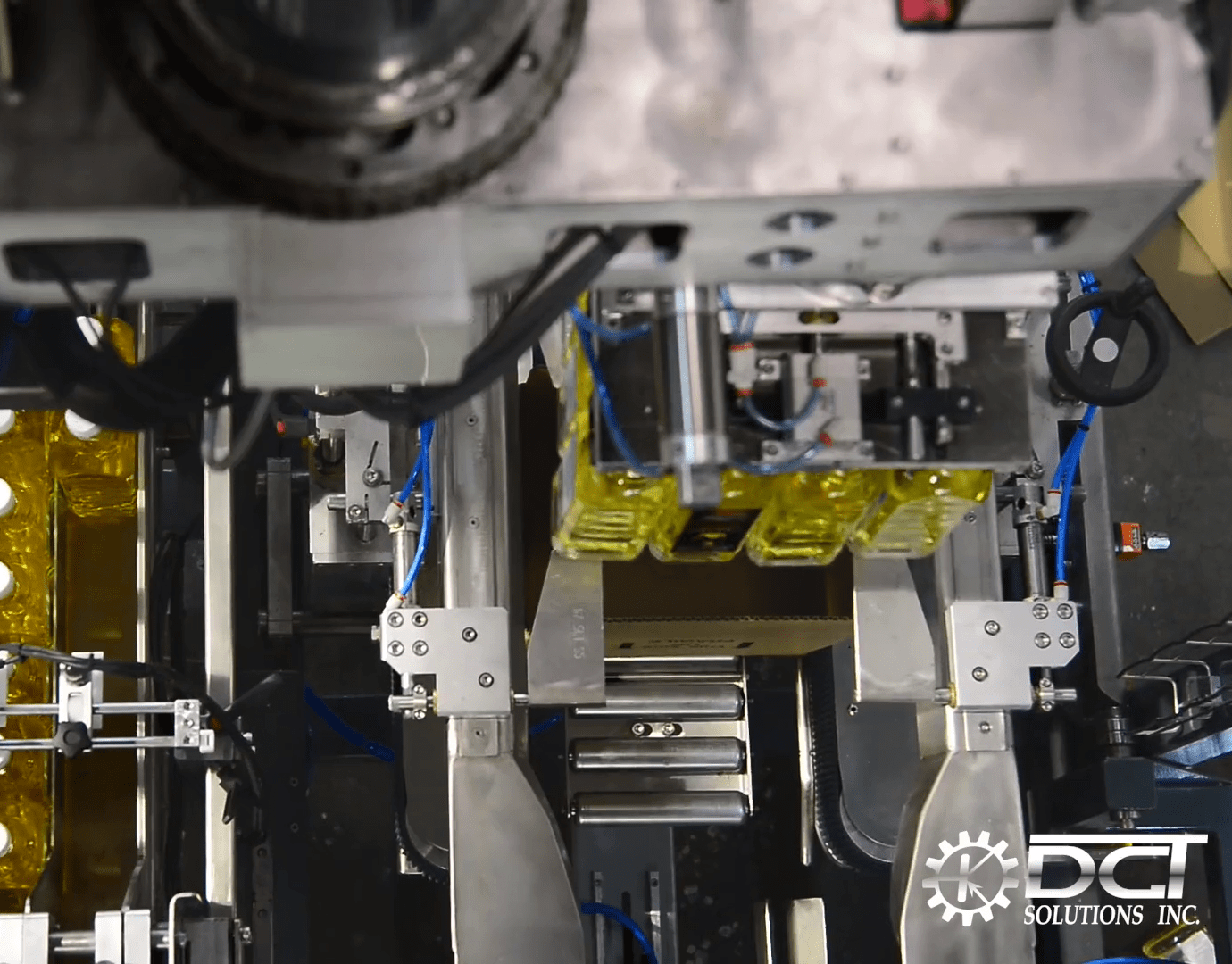

Step 7: Packing the bottles into the box

The rotary gripper with the products goes down and places them into the opened box.

Automatic pick & place case packer for bottles

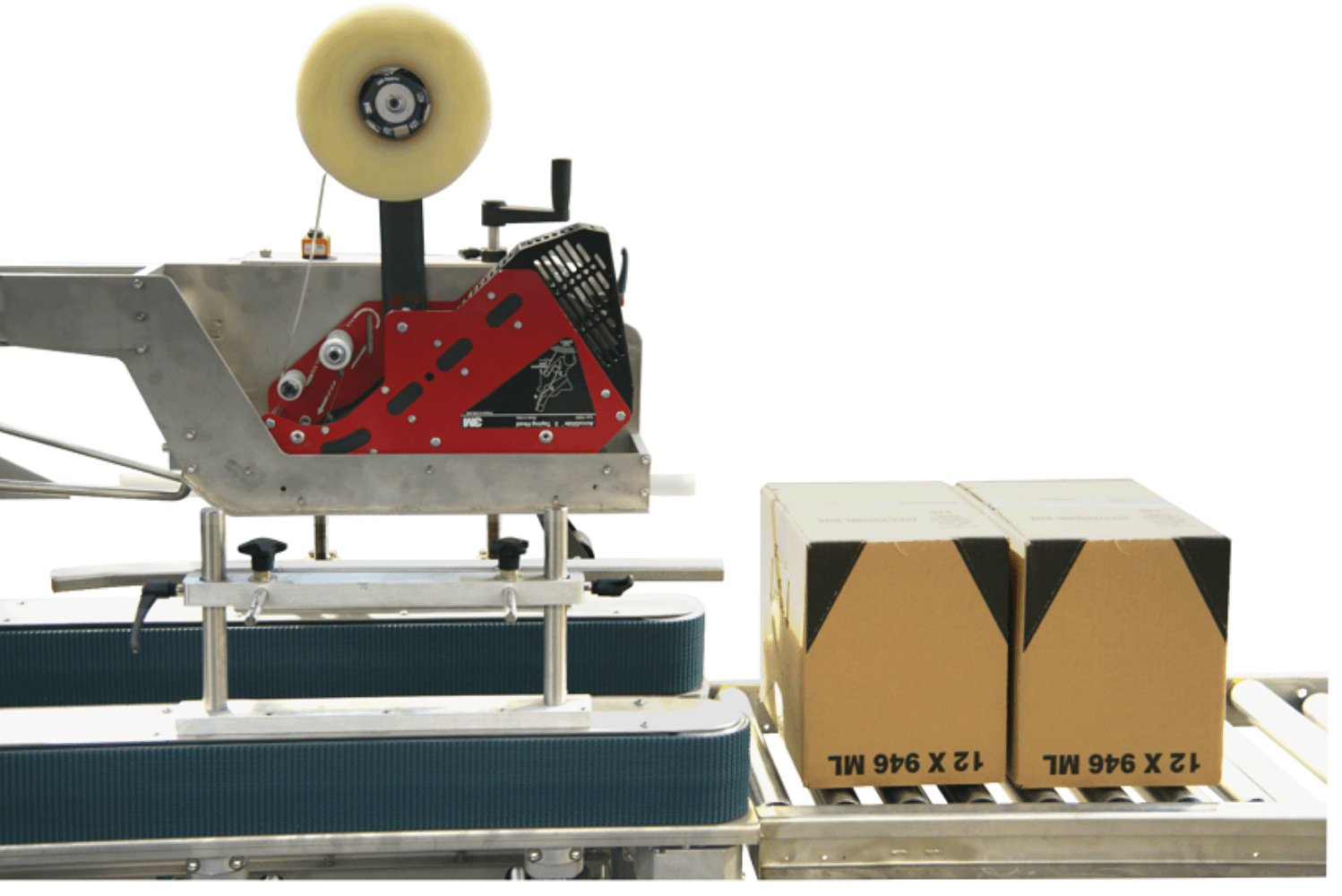

Step 8: Box closing and sealing

The box is then moved by side belts to the sealing section. Box upper flaps are gradually closed and both upper and bottom flaps are sealed with adhesive tape or hot melt glue.



Features

Box formers |  case erectors | box forming machines

Box former is integrated as a section of the case packing machine.

Box formers |  case erectors | box forming machines

Manual loading of blank flat cardboard cases/boxes into the box magazine.

Box formers |  case erectors | box forming machines

The box magazine can be extended to increase its capacity so that the system can operate for longer without refilling the boxes.

Box formers |  case erectors | box forming machines

The next box is erected and folded as soon as the previous box is transferred for further processing. The system can handle a wide range of formats with a few simple adjustments.

Box formers |  case erectors | box forming machines

The box former can handle a wide range of formats with a few simple adjustments.

Box formers |  case erectors | box forming machines

Right/left version (integrated into the right or left case packer).

Box formers |  case erectors | box forming machines

Case sealing with adhesive tape or hot glue.

Box formers |  case erectors | box forming machines

Case packing machines are enclosed with Lexan polycarbonate panels and guards, and door safety switches

Box formers |  case erectors | box forming machines

All electrical hazard points and pinch points are clearly marked.

Box formers |  case erectors | box forming machines

External means are provided to adjust the height/width and angles of the adjustable units of the machine
